1.0 API Reference
The CarFix API is organized around REST. Our API has predictable resource-oriented URLs, accepts form-encoded request bodies, returns JSON-encoded responses, and uses standard HTTP response codes, authentication, and verbs.

You can use the CarFix API in test environment, which does not affect the production data. The API key used to authenticate the request determines whether the request is production or test mode.

In order to start using our API, you will be required to register with us as developer by contacting us via email info@carfix.my.

The base URL of the CarFix API for both Production and Testing (UAT) Mode:
Production
https://apicf.carfix.my
UAT
https://uat.carfix.my
2.0
Authentication
The CarFix API uses OAuth 2.0 Bearer Token authentication. This authentication method requires for you to pass Bearer Token with your request. Token can be generated by passing clientusername and clientkey that will be provided when you are registered with us and request for API access.

Your clientusername and clientkey carry many privileges, so be sure to keep them secure! Do not share them in publicly accessible areas.

All API request must be made over HTTPS. Calls made over plain HTTP will fail. API requests without authentication will also fail.
2.1
Get Access Token for Affiliate API

Explanation
This function is used to obtain token for authentication
URL
https://<BaseUrl>/AffiliateAPI/OAuth/Token
Method
POST

2.1.1
Request
{
    "clientusername": "CARFIX-REFERRED",
    "clientkey": "627a1c11-0ea4-4e23-9632-10621297ffe3"
}

Request Body Definition
# Key Value Type Description API to obtain value
1 clientusername <string> Username provided by Carfix for each affiliate NA
2 clientkey <string> Key provided by Carfix for each affiliate NA

2.1.2
Response
{
    "access_token": "xxx",
    "token_type": "bearer",
    "expires_in":  215999.93749759998,
    "scope": "",
    "schema": ""
}

2.2
Get Access Token for Workshop API

Explanation
This function is used to obtain token for authentication
URL
https://<BaseUrl>/WorkshopTruckAPI/OAuth/Token
Method
POST

2.2.1
Request
{
    "clientusername": "ONEWORKS-TOWING",
    "clientkey": "b96ed12a-91af-4049-9067-aae9793b4347"
}

Request Body Definition
# Key Value Type Description API to obtain value

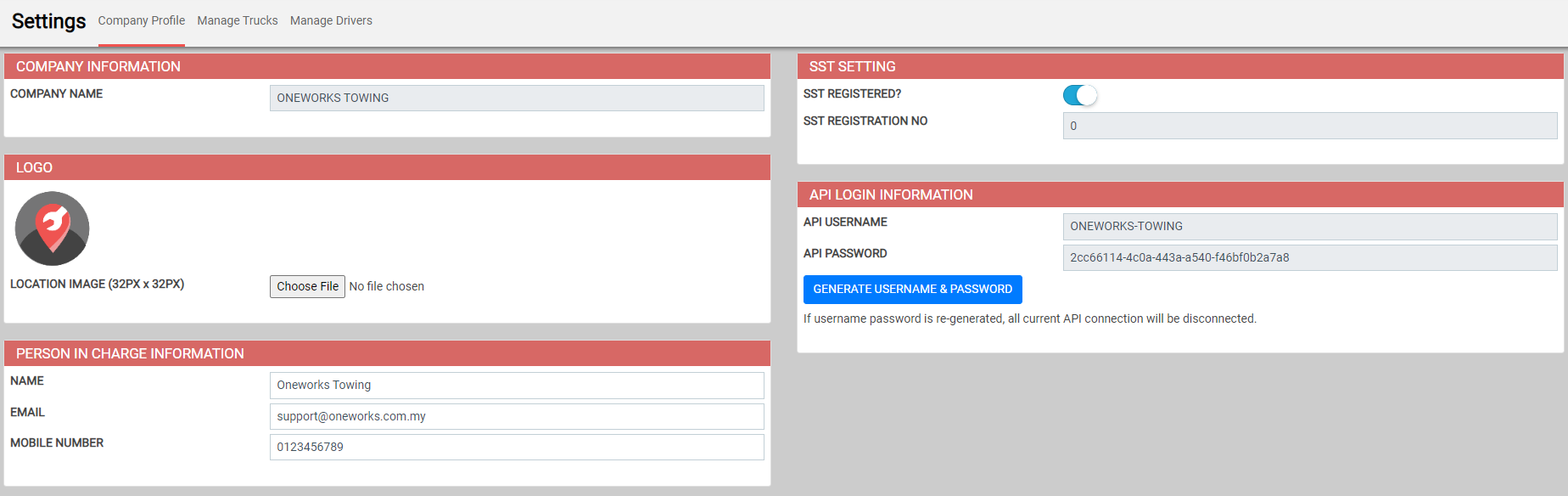

1 clientusername <string> Refer to Appendix A to get username from company setting page NA
2 clientkey <string> Refer to Appendix A to get key from company setting page NA

2.2.2
Response
{
    "access_token": "xxx",
    "token_type": "bearer",
    "expires_in":  215999.93749759998,
    "scope": "",
    "schema": ""
}

3.0
List of Functions for Affiliate API
3.1
Test

Explanation
This function is used for a test request to check the API call in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/Test

3.1.1
Post Request Body
  • Not Required

{
    "clientusername": "CARFIX-REFERRED",
    "clientkey": "627a1c11-0ea4-4e23-9632-10621297ffe3"
}

3.2
Initial Call Centre Case
Explanation
This function is to create a new case in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/InitialCallCentreCase

3.2.1
Post Request Body
3.2.1.1
Example
{
    "CaseInfo": {
        "VehicleNo": "ABC1234",
        "CallerContactNo": "60123456789",
        "Name": "Wong Wai Yan"
    },
    "IncidentLocation": "70300 SEREMBAN, NEGERI SEMBILAN, MALAYSIA",
    "LocationCoordinate": "2.725889,101.9378239",
}

Definition
# Key Value Type Description API to obtain value
1 VehicleNo <string(30)> NA
2 CallerContactNo <string(30)> Format: {60+}
Example: 60123456789		 NA
3 Name <string(200)> Insured Name NA
4 IncidentLocation <varchar(300)> NA
5 LocationCoordinate <string,string> NA

3.2.1.2
Response
{
    "CaseID": "*******",
    "Message": "Case Created Successfully",
    "Result": true
}

3.3
Create Case
Explanation
This function is to create a new case in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/CreateCallCentreCase

3.3.1
Post Request Body
3.3.1.1
Example
{
    "CaseInfo": {
        "VehicleNo": "ABC1234",
        "NatureOfCall": "*******",
        "ServiceNeeded": "*******",
        "Make": "PERODUA",
        "Model": "PERODUA MYVI 1.3EZ1",
        "Type": "Manual",
        "CallerName": "Lana",
        "CallerContactNo": "60123456789",
        "InsuredEmail": "lana@gmail.com"
    },
    "ServiceInfo": {
        "BreakDownCause": "*******",
        "IsLowered": true,
        "SteeringCantTurn": true,
        "GearCantMove": false,
        "HandBreakCantRelease": false,
        "BasementORRoofTop": false,
        "IsCarBlocking": false,
        "IsSpareTyreGoodCondition": false,
        "IsSpecialToolsAndNutAvailable": false,
        "TyrePuncture": 3
    },
    "IncidentLocation": "70300 SEREMBAN, NEGERI SEMBILAN, MALAYSIA",
    "LocationCoordinate": "2.725889,101.9378239",
    "LocationState": "NEGERI SEMBILAN",
    "LocationArea": "SEREMBAN",
    "PanelWorkshopName": "WORKSHOP A",
    "WorkshopName": "",
    "TowDestination": "70300 SEEMBAN",
    "TowDestinationCoordinate": "2.725889,101.9378239",
    "TowDestinationState": "NEGERI SEMBILAN",
    "TowDestinationArea": "SEREMBAN"
}

Definition
# Key Value Type Description API to obtain value
1 VehicleNo <string(30)> NA
2 NatureOfCall <string> NA
3 ServiceNeeded <string> NA
4 Make <string(50)> NA
5 Model <string(200)> NA
6 Type <string(100)> NA
7 CallerName <string(100)> NA
8 CallerContactNo <string(50)> Format: {60+}
Example: 60123456789		 NA
9 InsuredEmail <string(100)> NA
10 BreakDownCause <string> 3.15 Get Breakdown Causes
11 IsLowered <bool> NA
12 SteeringCantTurn <bool> NA
13 GearCantMove <bool> NA
14 HandBreakCantRelease <bool> NA
15 BasementORRoofTop <bool> NA
16 IsCarBlocking <bool> NA
17 IsSpareTyreGoodCondition <bool> NA
18 IsSpecialToolsAndNutAvailable <bool> NA
19 TyrePuncture <int> Uses the label return from api 3.14 Get Type of Punctures
20 IncidentLocation <varchar(300)> NA
21 LocationCoordinate <string,string> NA
22 LocationState <string> Uses the label return from api 3.10 Get States
23 LocationArea <string> Uses the label return from api 3.11 Get Areas
24 PanelWorkshopName <varchar(300)> NA
25 WorkshopName <varchar(300)> [Optional]. If Panel workshop name is provided, this field left blank. NA
26 TowDestination <varchar(300)> NA
27 TowDestinationCoordinate <string,string> NA
28 TowDestinationState <string> Uses the label return from api 3.10 Get States
29 TowDestinationArea <string> Uses the label return from api 3.11 Get Areas

3.3.1.2
Response
{
    "CaseID": "*******",
    "Message": "Case Created Successfully",
    "Result": true
}

3.4
Get Case Details
Explanation
This function is to get the details of the created case in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCaseDetails

3.4.1
Post Request Body
3.4.1.1
Example
{
    "CaseID": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 CaseID <string> CaseID of created case in Carfix 3.2 Create Case

3.4.1.2
Response
{
    "VehicleNo": "ABC1234",
    "CaseStatus": "Open",
    "CreatedDate": "2023-03-13T14:56:18.67",
    "TruckNo": null,
    "TruckLatitude": null,
    "TruckLongitude": null,
    "ArrivedTime": "2023-03-13T15:26:18.61",
    "IncidentLocation": "70300 SEREMBAN, NEGERI SEMBILAN, MALAYSIA",
    "LocationCoordinate": "2.72588900, 101.93782390",
    "TowDestination": "70300 SEEMBAN",
    "TowDestinationCoordinate": "2.72588900, 101.93782390",
    "CoverByUs": null,
    "PayableByInsured": null,
    "DriverName": null,
    "ImageUrl": "",
    "ServiceNeeded": "Towing - Tow Truck A",
    "InsuranceName": "CARFIX REFERRED",
    "InsImageURL": "",
    "PolicyDue": "Inactive",
    "ServiceConfirmedDate": null,
    "TruckAssignedDate": null,
    "CaseResolvedDate": null,
    "CaseClosedDate": null,
    "data": []
}

3.5
Update Case Resolved
Explanation
This function is to update the status of the created case to “CASE RESOLVED” in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/UpdateCaseResolved

3.5.1
Post Request Body
3.5.1.1
Example
{
    "CaseID": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 CaseID <string> CaseID of created case in Carfix 3.2 Create Case

3.5.1.2
Response
{
    "Result": true
}

3.6
Update Caller Satisfaction Rating
Explanation
This function is to update caller satisfaction rating on the service provided in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/UpdateCallerSatisfactionRating

3.6.1
Post Request Body
3.6.1.1
Example
{
    "CaseID": "*******",
    "CustomerSatisfactionID": 3,
    "CustomerRemarks": "Service Is Good"
}

Definition
# Key Value Type Description API to obtain value
1 CaseID <string> CaseID of created case in Carfix 3.2 Create Case
2 CustomerSatisfactionID int Rating for service satisfaction from 0,1,2,3,4,5 NA
3 CustomerRemarks <varchar(200)> Customer feedback in text form NA

3.6.1.2
Response
{
    "Result": true
}

3.7
Update Arrival Time
Explanation
This function is to update the arrival time of service provider to incident location in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/UpdateArrivalTime

3.7.1
Post Request Body
3.7.1.1
Example
{
    "CaseID": "*******",
    "ArrivalDateTime": "2012-07-23T18:25:43.511Z"
}

Definition
# Key Value Type Description API to obtain value
1 CaseID <string> CaseID of created case in Carfix 3.2 Create Case
2 ArrivalDateTime Datetime Datetime format for update arrival time of provider NA

3.7.1.2
Response
{
    Result": true
}

3.8
Update Incident Photos
Explanation
This function is to update the photos taken on incident location by service provider in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/UpdateIncidentPhotos

3.8.1
Post Request Body
3.8.1.1
Example
{
    "CaseID": "*******",
    "images": "/9j/4AAQSkZJRgABAQAAAQABAAD/2wCEAA ... QdBo7SnBcuR3RKs//2Q==",
}

Definition
# Key Value Type Description API to obtain value
1 CaseID <string> CaseID of created case in Carfix 3.2 Create Case
2 images <string> List of images (.jpg). Base-64 encode string of the image. NA

3.9
Get List of Workshop
Explanation
This function is to get a list of all panel workshop in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCaseListofWorkshop

3.9.1
Post Request Body
3.9.1.1
Example
{
    "Area": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 Area <string> Uses the id return from api 3.12 Get Areas

3.9.1.2
Response
[
    {
        "id": "*******",
        "label": "AAM CARFIX SDN BHD"
    }
]

3.10
Get List of RSA Workshop
Explanation
This function is to get a list of all panel workshop in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCaseListofRSAWorkshop

3.10.1
Post Request Body
3.10.1.1
Example
{
    "Area": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 Area <string> Uses the id return from api 3.12 Get Areas

3.10.1.2
Response
[
    {
        "id": "*******",
        "label": "LIM TRANSPORT ENTERPRISE"
    }
]

3.11
Get Car Makes
Explanation
This function is to get a list of all car makes in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCarMakes

3.11.1
Post Request Body
  • Not Required

3.11.2
Response
[
    {
        "label": "ALFA ROMEO"
    },
    {
        "label": "APRILIA"
    },
    {
        "label": "AUDI"
    },
]

3.12
Get States
Explanation
This function is to get a list of all the states in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetStates

3.12.1
Post Request Body
  • Not Required

3.12.2
Response
[
    {
        "id": "*******",
        "label": "Johor"
    },
    {
        "id": "*******",
        "label": "Kedah"
    },
    {
        "id": "*******",
        "label": "Kelantan"
    },
]

3.13
Get Areas
Explanation
This function is to get a list of all areas by states in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetAreas

3.13.1
Post Request Body
3.13.1.1
Example
{
    "State": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 State <string> Uses the id return from api 3.10 Get States

3.13.1.2
Response
[
    {
        "id": "*******",
        "label": "BATU PAHAT"
    },
    {
        "id": "*******",
        "label": "BUKIT INDAH"
    },
    {
        "id": "*******",
        "label": "DESARU"
    }
]

3.14
Get Nature of Calls
Explanation
This function is to get the list of all nature of calls in Carfix.
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetNatureofCalls

3.14.1
Post Request Body
  • Not Required

3.14.2
Response
[
    {
        "id": "*******",
        "label": "Accident"
    },
    {
        "id": "*******",
        "label": "Breakdown"
    },
    {
        "id": "*******",
        "label": "Extended Warranty"
    },
    {
        "id": "*******",
        "label": "General Enquiry"
    },
    {
        "id": "*******",
        "label": "Others"
    }
]

3.15
Get Service Needed
Explanation
This function is to get the list of all services in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetServiceNeededs

3.15.1
Post Request Body
3.15.1.1
Example
{
    "NatureOfCall": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 NatureOfCall <string> Uses the id return from api 3.13 Get Nature of Calls

3.15.1.2
Response
[
    {
        "id": "*******",
        "label": "Towing - Tow Truck A"
    },
    {
        "id": "*******",
        "label": "Towing - Vehicle Carrier A"
    }
]

3.16
Get Type of Punctures
Explanation
This function is to get list of all types of punctures for change tire service in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetTypePunctures

3.16.1
Post Request Body
  • Not Required

3.16.2
Response
[
    {
        "id": 1,
        "label": "Front Left"
    },
    {
        "id": 2,
        "label": "Front Right"
    },
    {
        "id": 4,
        "label": "Rear Left"
    },
    {
        "id": 8,
        "label": "Rear Right"
    }
]

3.17
Get Breakdown Causes
Explanation
This function is to get the list of all breakdown causes in Carfix
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetBreakdownCauses

3.17.1
Post Request Body
  • Not Required

3.17.2
Response
[
    {
        "id": "*******",
        "label": "Electrical Fault"
    },
    {
        "id": "*******",
        "label": "Engine Problem"
    },
    {
        "id": "*******",
        "label": "Flat Battery"
    },
    {
        "id": "*******",
        "label": "Flat Tyre"
    },
    {
        "id": "*******",
        "label": "Flood"
    },
    {
        "id": "*******",
        "label": "Overheat"
    },
    {
        "id": "*******",
        "label": "Transmission Problem"
    },
    {
        "id": "*******",
        "label": "Unable To Start"
    },
    {
        "id": "*******",
        "label": "Unknown"
    }
]

3.18
Get Truck Coordination
Explanation
This function is to get the coordination of the service provider
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetTruckCoordination

3.18.1
Post Request Body
3.18.1.1
Example
{
    "TruckNo": "ABC1234",
    "CaseID": "*******"

}

Definition
# Key Value Type Description API to obtain value
1 TruckNo <string> TruckNo of truck driver NA
2 UserCode <string> Usercode of tow driver NA

3.18.1.2
Response
{
    "items": [
        {
            "TruckNo": "ABC1234",
            "Status": "ACTIVE",
            "Online": "Offline",
            "CurrentDriver": null,
            "LastUpdateTime": "17/02/2024 01:58:16 PM",
            "Latitude": null,
            "Longitude": null
        },
    ]
}

3.19
Cancel Case
Explanation
This function is to cancel case
URL
https://<BaseUrl>/AffiliateAPI/api/Case/CancelCase

3.19.1
Post Request Body
3.19.1.1
Example
{
    "Key": "*******",
    "IsCheckOnly": "false"
}

Definition
# Key Value Type Description API to obtain value
1 Key <string> Key of the case NA
2 IsCheckOnly <string> Is for checking purpose only NA

3.19.1.2
Response
{
    "Result": "Yes",
    "CaseStatus": "Cancelled",
    "CancellationCharges": 0.00,
    "ErrorMessage": ""
}

3.20
Get Case Status
Explanation
This function is to get the status of the case
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCaseStatus

3.20.1
Post Request Body
3.20.1.1
Example
{
    "Key": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 Key <string> Key of the case NA

3.20.1.2
Response
{
    "Result": "Yes",
    "CaseStatus": [
        "Open",
        "WorkInProgress",
        "CaseResolved",
        "Closed",
        "Cancelled"
    ]
}

3.21
Get List of Cases
Explanation
This function is to get the list of the case
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCases

3.21.1
Post Request Body
3.21.1.1
Example
{
    "VehicleNumber": "*******",
    "CreatedFromDate": "*******",
    "CreatedToDate": "*******"
}

Definition
# Key Value Type Description API to obtain value
1 VehicleNumber <string(30)> Filter by case vehicle number NA
2 CreatedFromDate <string> Filter by case created date, date format as yyyy-MM-dd HH:mm:ss NA
3 CreatedToDate <string> Filter by case created date, date format as yyyy-MM-dd HH:mm:ss NA

3.21.1.2
Response
[
    {
        "ReferenceNo": "xxxxxx-xxx-xxxxx",
        "CaseID": "*******",
        "CreatedDate": "2023-10-02T14:31:28.673"
    },
    {
        "ReferenceNo": "xxxxxx-xxx-xxxxx",
        "CaseID": "*******",
        "CreatedDate": "2023-10-02T14:53:14.37"
    },
    {
        "ReferenceNo": "xxxxxx-xxx-xxxxx",
        "CaseID": "*******",
        "CreatedDate": "2023-10-02T15:38:17.317"
    }
]

3.22
Get Incident Photos
Explanation
This function is to get list of case images
URL
https://<BaseUrl>/AffiliateAPI/api/Case/GetCaseImages

3.22.1
Post Request Body
  • Not Required

3.22.2
Response
[
    {
        "CaseID": "*******",
        "Images": [
            {
                "FileName": "fileName.jpg",
                "Base64String": "/9j/4AAQSkZJRgABAQAAAQABAAD/2wCEAA ... QdBo7SnBcuR3RKs//2Q=="
            }
        ]
    },
]

4.0
List of Functions for Workshop API
4.1
GetTrucks

Explanation
This function is to get the list of all trucks for requested workshop
URL
https://<BaseUrl>/WorkshopTruckAPI/api/truck/GetTrucks
Method
GET

4.1.1
Request
Request Header
Authorization
Bearer {access_token}

Request Body
  • Not Required

4.1.2
Response
{
    "items": [
        {
            "TruckNo": "ABC1234",
            "Status": "ACTIVE",
            "Online": "Offline",
            "CurrentDriver": “Ali”,
            "LastUpdateTime": "18/03/2021 01:44:10 PM",
            "Latitude": 3.08983780,
            "Longitude": 101.68929460
        }
    ]
}

4.2
GetDrivers

Explanation
This function is to get the list of all drivers for requested workshop
URL
https://<BaseUrl>/WorkshopTruckAPI/api/truck/GetDrivers
Method
GET

4.2.1
Request
Request Header
Authorization
Bearer {access_token}

Request Body
  • Not Required

4.2.2
Response
{
    "items": [
        {
            "Name": "Ali",
            "IsLeader": "NO",
            "UserCode": "123456",
            "PhoneNo": "0123456789",
            "Status": "ACTIVE"
        }
    ]
}

4.3
Update Truck Coordinate

Explanation
This function is to update truck coordinate based on IMEI number and Truck number
URL
https://<BaseUrl>/WorkshopTruckAPI/api/truck/UpdateTruckCoordinate
Method
POST

4.3.1
Request
Request Header
Authorization
Bearer {access_token}

Request Body
{
    "IMEI": "123456789012345",
    "TruckNo": "ABC1234",
    "Latitude": 3.19746700
    "Longitude": 101.71457700
}

4.3.2
Response
{
    "IMEI": "123456789012345",
    "TruckNo": "ABC1234",
    "Status": "ACTIVE",
    "Online": "Offline",
    "CurrentDriver": null,
    "LastUpdateTime": "22/07/2022 11:23:11 AM",
    "Latitude": 3.19746700,
    "Longitude": 101.71457700
}

4.4
Get Claims

Explanation
This function is to get the list of all own damage claims for requested workshop
URL
https://<BaseUrl>/WorkshopTruckAPI/api/Claim/GetClaims?accidentFromDate=YYYY-MM-DD&accidentToDate=YYYY-MM-DD
Method
GET

4.4.1
Request

Request Header
Authorization
Bearer {access_token}

Request Parameter
# Key Value Type Description API to obtain value
1 accidentFromDate date Example: YYYY-MM-DD NA
2 accidentToDate date Example: YYYY-MM-DD NA

Request Body
  • Not required

4.4.2
Response
{
    "items": [
        {
            "key": "*******",
            "ClaimType": "OD Notification",
            "VehicleNo": "ABC1234",
            "AccidentDate": "2022-09-03T08:27:11.313",
            "InsuredName": "Ali",
            "MakeModel": "MAZDA CX30",
            "Insurer": "CARFIX REFERRED",
            "ClaimStatus": "Unsubmitted"
        }
    ]
}

4.5
Get Claim Detail

Explanation
This function is to get the details of a claim
URL
https://<BaseUrl>/WorkshopTruckAPI/api/Claim/GetClaimDetail?key=xxxxxxxxxxxx
Method
GET

4.5.1
Request

Request Header
Authorization
Bearer {access_token}

Request Parameter
# Key Value Type Description API to obtain value
1 key <string> 4.4 Get Claims

Request Body
  • Not required

4.5.2
Response
{
    "ClaimDetail": {
        "InCompanyName": "Insurance BHD",
        "CarRegNo": "ABC1234",
        "AccidentDate": "2022-08-22T14:24:00",
        "AccidentPlace": "58200 Kuala Lumpur, KL, Malaysia",
        "PolicyNo": "PN123",
        "PolicyCover": "",
        "ClaimType": "Own Damage",
        "Make": "BMW",
        "Model": "1-Series 2013 On",
        "VehYear": null,
        "EngineNo": null,
        "ChassisNo": null,
        "InsuredName": "Ali",
        "InsuredEmail": "ali@mail.com",
        "DriverName": "Ali"
    },
    "EstimateDetail": {
        "Parts": 1550.00,
        "Labour": 0.00,
        "PaintworkLabour": 0.00,
        "PaintMaterials": 0.0,
        "Towing": 0.0,
        "Miscellenous": 0.00,
        "Total": 1550.00,
        "EstimateParts": [
            {
                "Description": "*BONNET",
                "PartNo": null,
                "Src": 1,
                "Qty": 1,
                "Price": "*1,000.00",
                "Disc": 0.00,
                "Btmt": 0.00,
                "Total": "1,000.00F"
            },
            {
                "Description": "*Fender RH",
                "PartNo": null,
                "Src": 1,
                "Qty": 1,
                "Price": "*250.00",
                "Disc": 0.00,
                "Btmt": 0.00,
                "Total": "250.00F"
            },
            {
                "Description": "*Fender LH",
                "PartNo": null,
                "Src": 1,
                "Qty": 1,
                "Price": "*300.00",
                "Disc": 0.00,
                "Btmt": 0.00,
                "Total": "300.00F"
            }
        ],
        "EstimateMiscellaneous": [],
        "EstimateLabours": [
            {
                "Description": "Bonnet",
                "Src": "T",
                "MET": "0.60",
                "Panel": "0.40",
                "Paint": "6.10",
                "CP": "0.40",
                "Other": "",
                "Total": 7.50
            },
            {
                "Description": "Fender Front LH",
                "Src": "T",
                "MET": "1.20",
                "Panel": "0.50",
                "Paint": "6.30",
                "CP": "0.40",
                "Other": "",
                "Total": 8.40
            },
            {
                "Description": "Fender Front RH",
                "Src": "T",
                "MET": "1.20",
                "Panel": "0.50",
                "Paint": "6.30",
                "CP": "0.40",
                "Other": "",
                "Total": 8.40
            }
        ]
    }
}

Appendix
A
API Information in Company Setting Page
The API information is located at Company Setting page, the following settings are available:
API Key Value
Workshop API clientusername Refer to API Username in API Login Information
clientkey Refer to API Password in API Login Information

From the Section API Login Information, API Username and API Password can be generated by clicking the button ‘Generate Username & Password’. All current API connection will be disconnected if credentials are re-generated.
